Gemological Instruments
Gemstone cutting and polishing machine for creating gemstone shapes

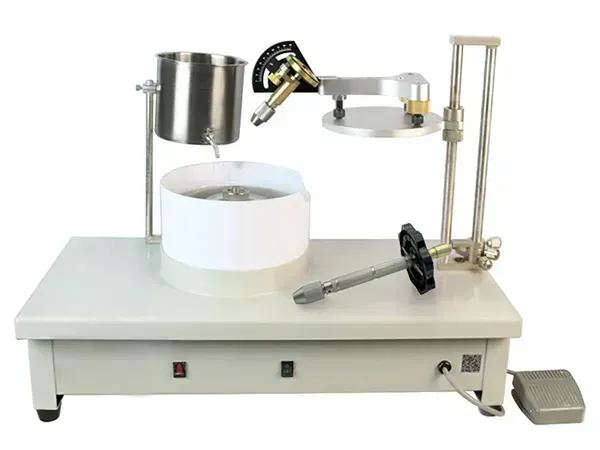

Gem Faceting Machine
Gem Faceting Machine Gem Faceting Machine Gem Faceting Machine

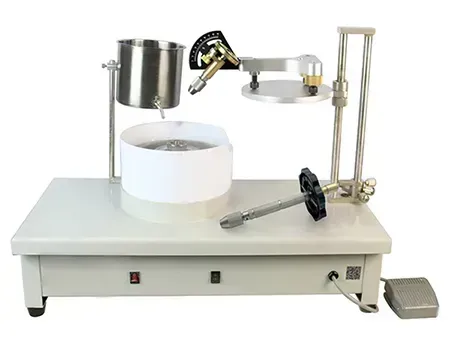

Gem Faceting Machine

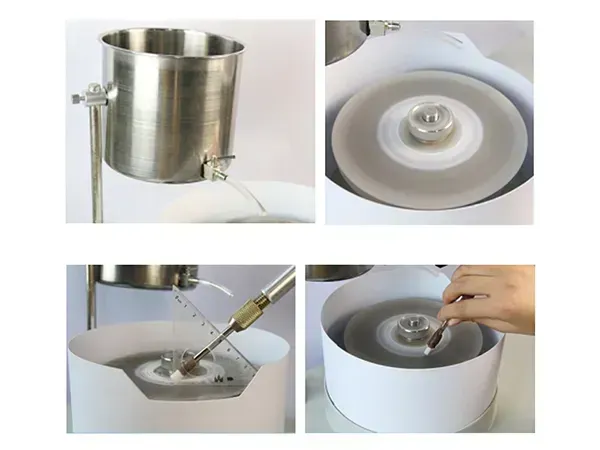

Gem faceting machines are used for precise cutting and polishing of gemstones, feature that makes them an important tool in lapidary work. Their design ensures smooth operation, stable performance, and effective heat dissipation, minimizing noise even at high speeds. The compact and well-balanced structure provides ease of use for both professionals and enthusiasts.

  • Switch Type: Features a momentary switch for low-speed grinding and polishing, along with a foot switch for high-speed operation
  • Drainage System: Designed with an anti-leak feature to prevent gemstone loss
Request a Quote
Applications
  • Faceting and shaping gemstone surfaces
  • Can process all shapes of faceted and cabochon gemstones (diamond excluded).
Applications
Applications
Applications
Technical Parameters
  • Power Supply: AC220V, 50-60Hz
  • Motor Power: 170-180W
  • Motor Speed: 1350 rpm
  • Spindle Speed: 2300-2800 rpm
  • Worktable: Circular design with a 16cm diameter
  • Grinding Disc Diameter: 150mm
  • Angle Adjustment Range: 0-90°
  • Dimensions (L×W×H): 600mm × 270mm × 410mm
Included Accessories
  • Adjustable height worktable
  • Water cup with faucet

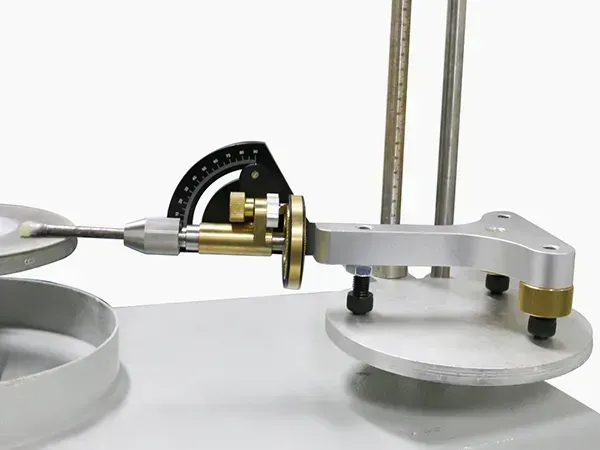

  • Faceting handpiece
  • Precision octagonal handpiece
  • 150mm zinc-alloy polishing disc

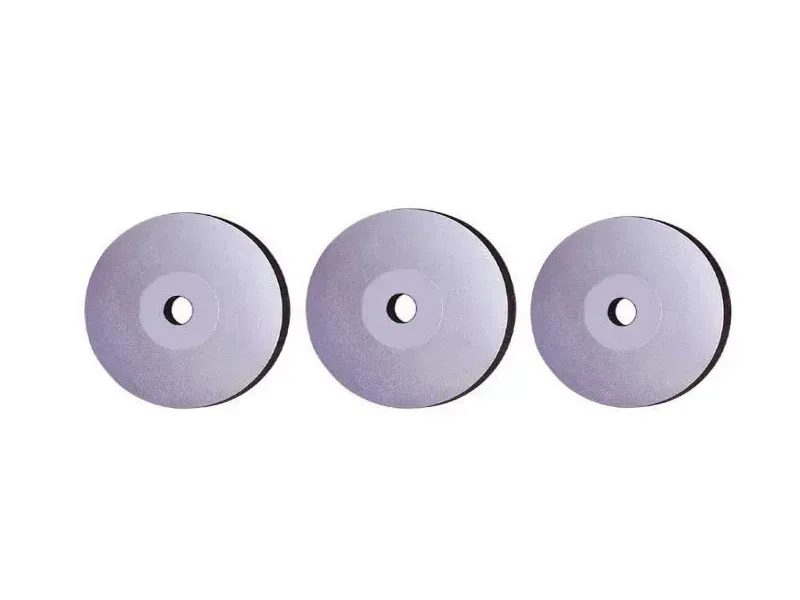

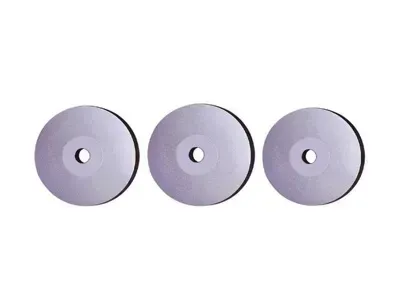

  • Diamond grinding discs (400#, 800#, 1200#)
  • Dop Sticks: 10 pieces
  • Dop Stick Insert Plate: Holds up to 50 dop sticks for organization
  • Dop Wax: Used for gemstone adhesion
  • 10x Folding Loupe: For detailed inspection
  • Dop Plate: Aids in repositioning gemstones for pavilion faceting
  • Dop Worktable: used to fix and position gemstones during adhesion
  • Transfer Dop (45° Block): Assists in faceting and polishing table facets
  • 19mm Wrench: For securing and removing grinding and polishing discs
  • Pliers: 200mm length, 45mm grip width, 55mm max opening for securing dop sticks

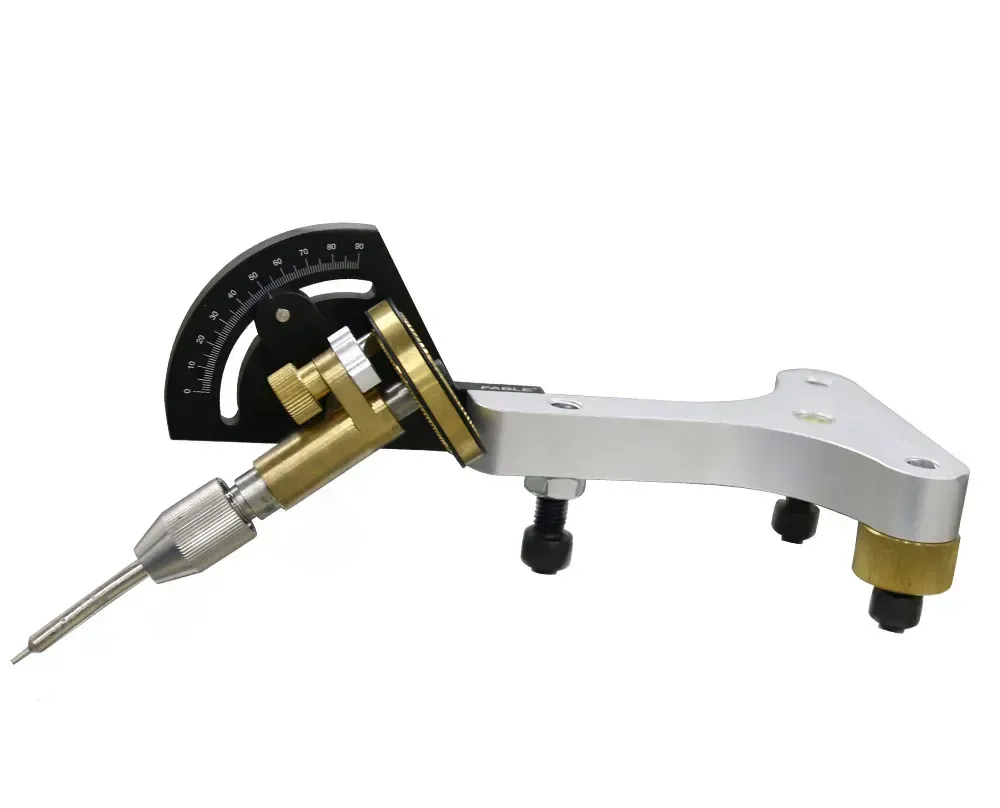

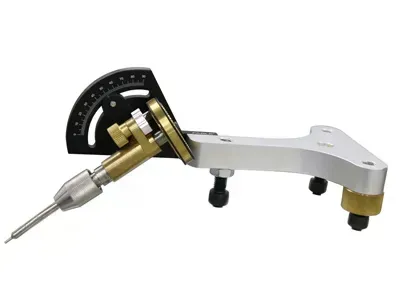

Faceting hand Faceting hand

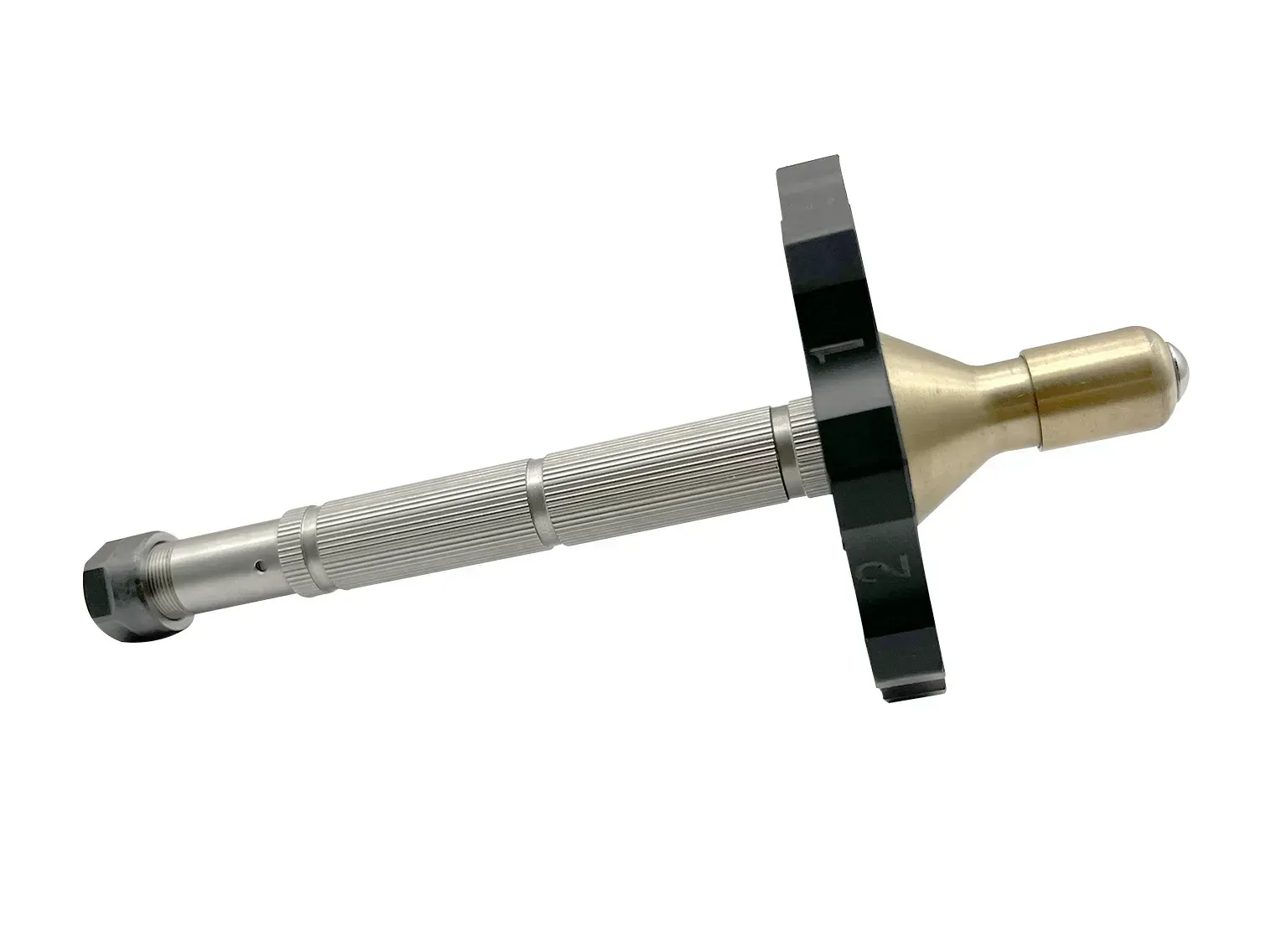

Precise octagon hand Precise octagon hand

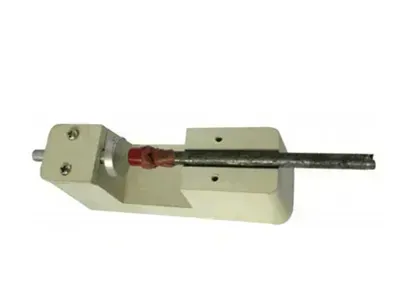

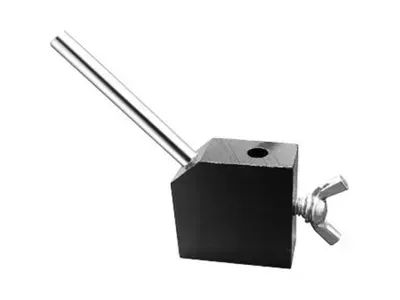

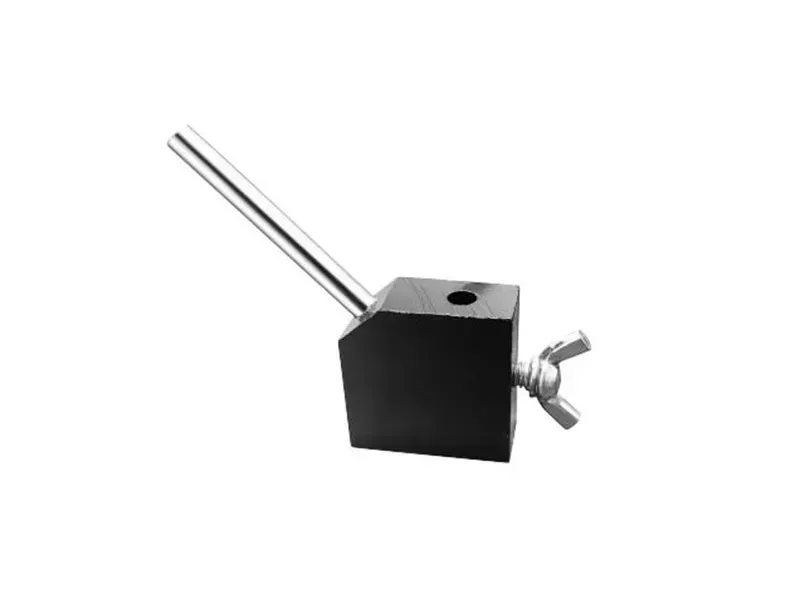

Transfer dop Transfer dop

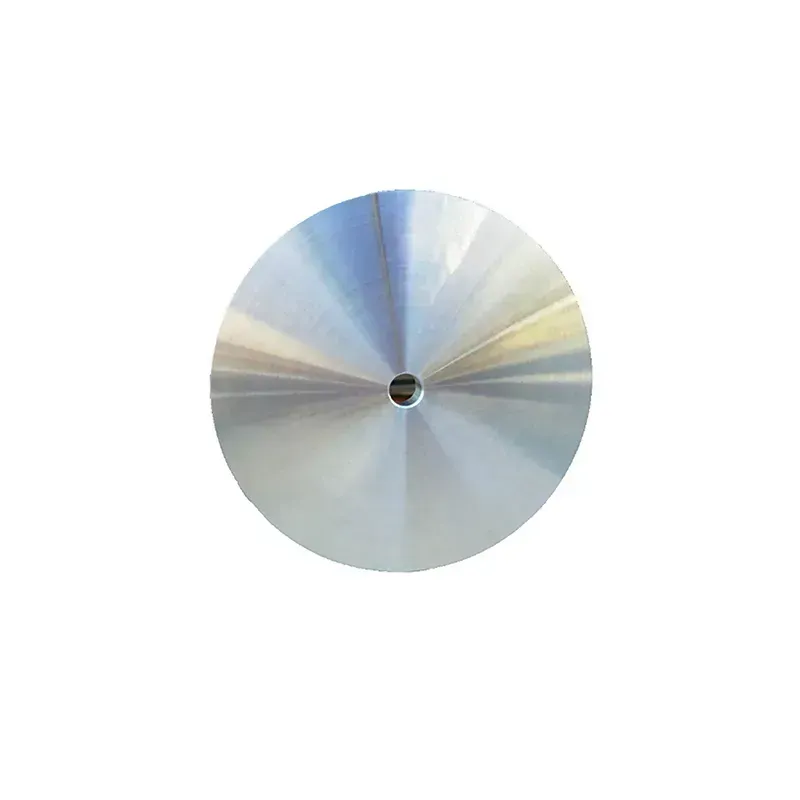

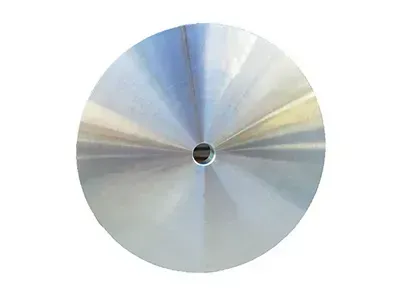

Zinc disc for polishing Zinc disc for polishing
Zinc disc Zinc disc

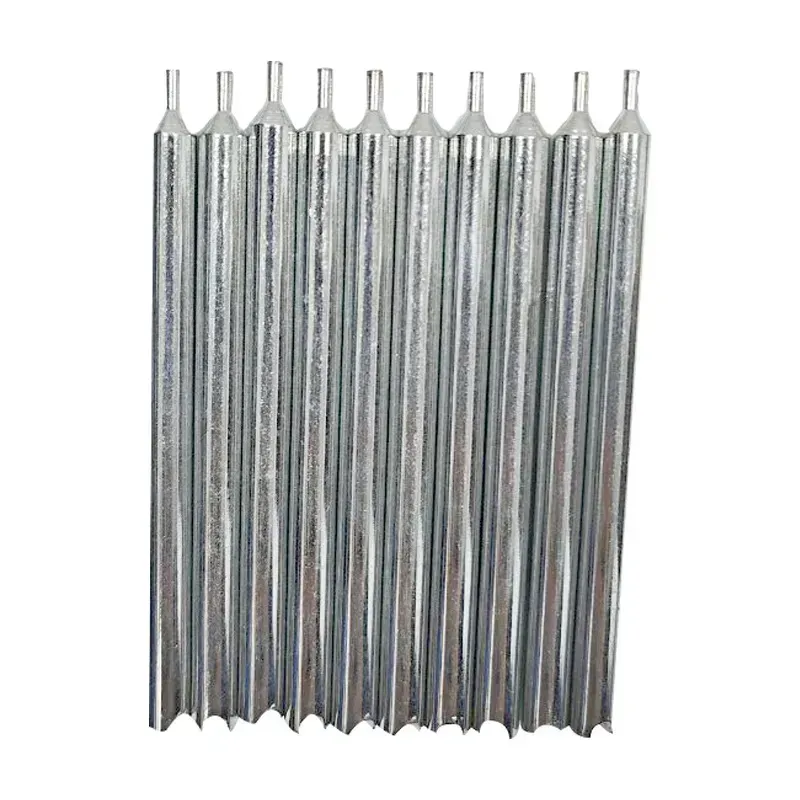

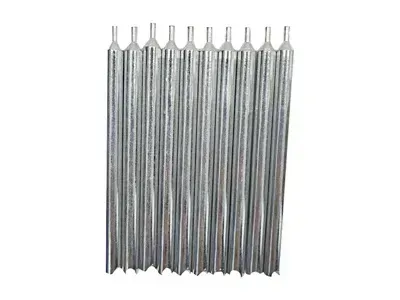

Dop sticks Dop sticks

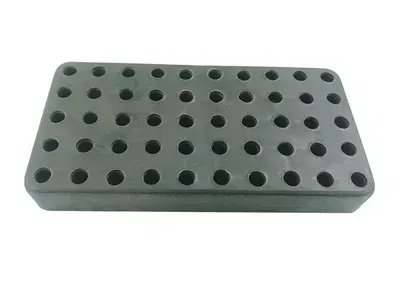

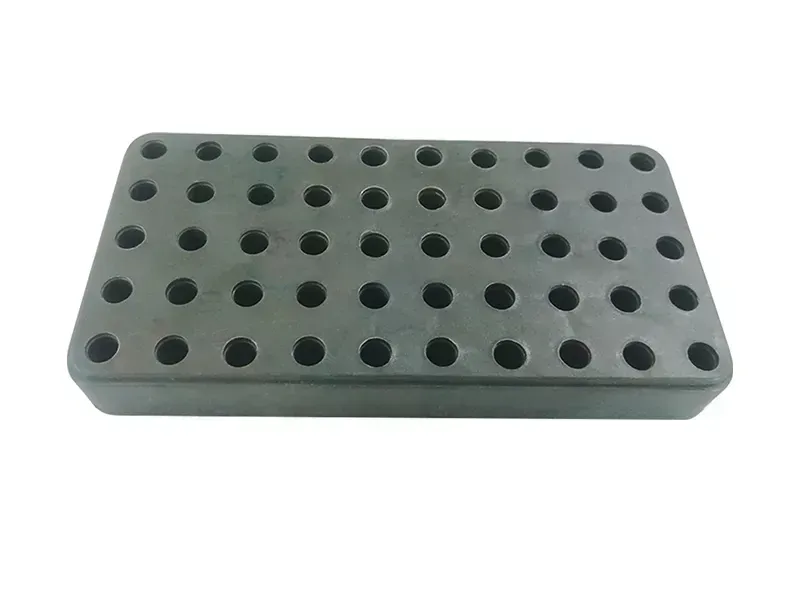

Dop sticks insert plate Dop sticks insert plate

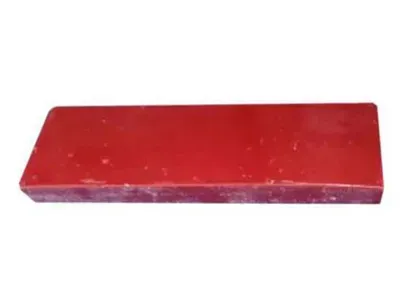

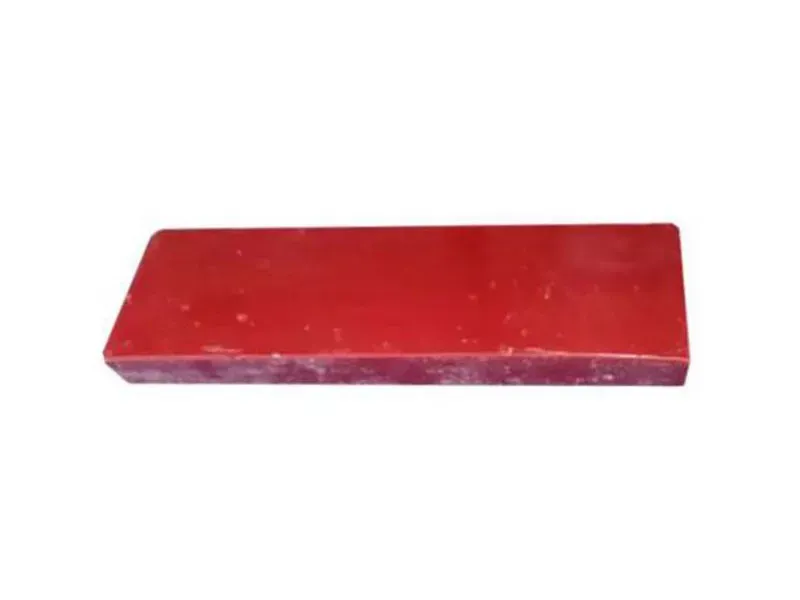

Dop wax Dop wax

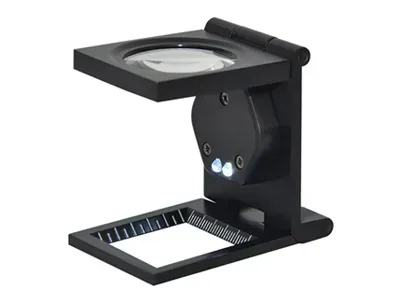

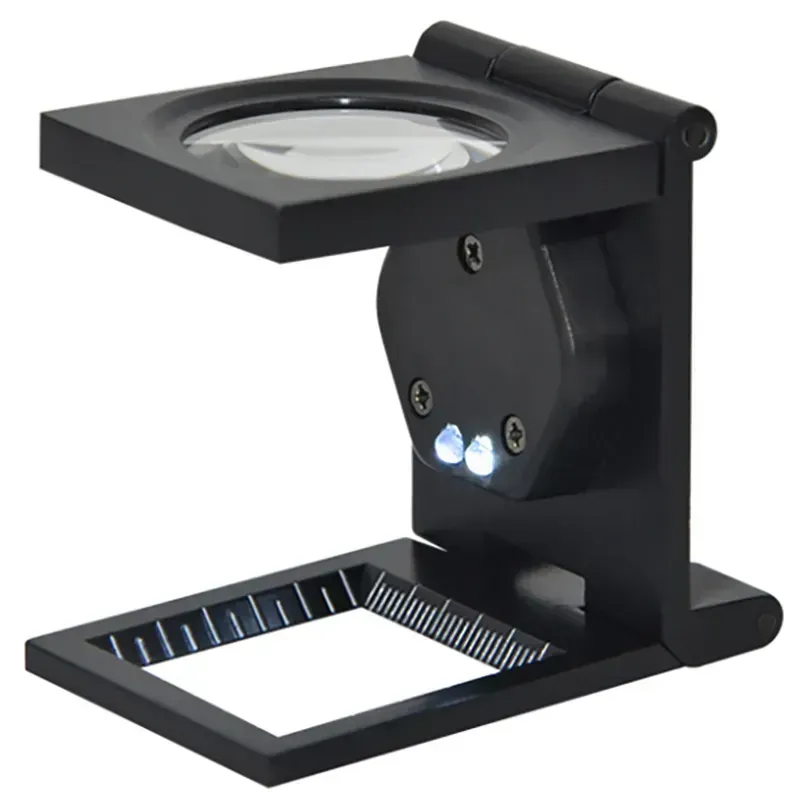

10X Gem loupe 10X Gem loupe
Dop plate Dop plate

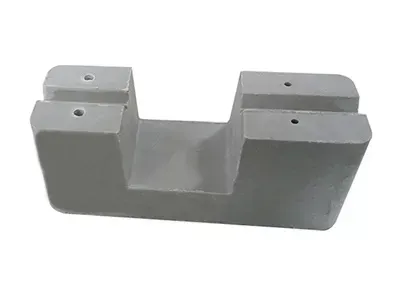

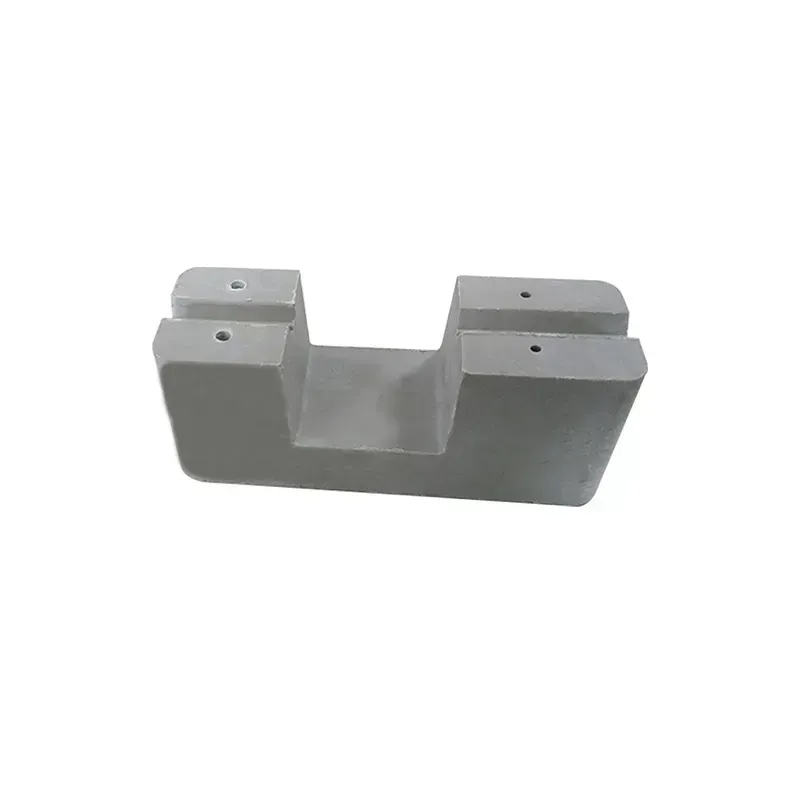

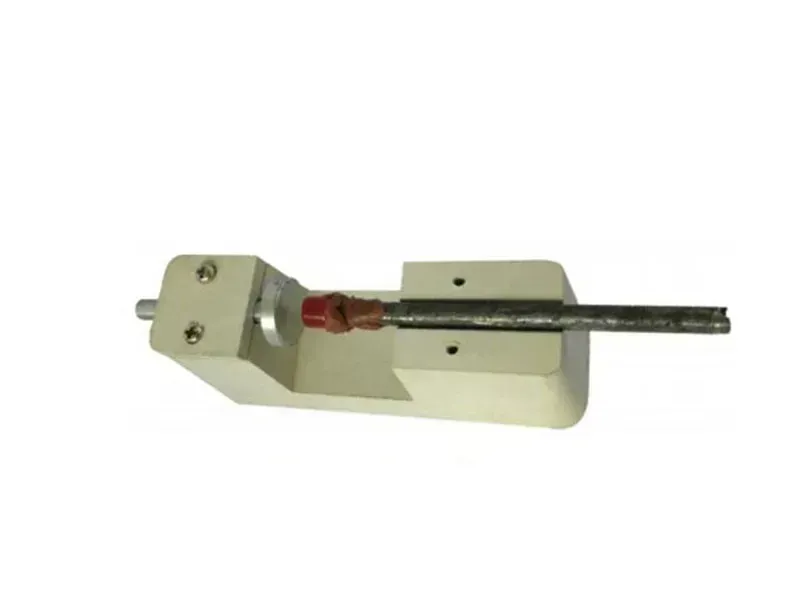

Dop worktable Dop worktable

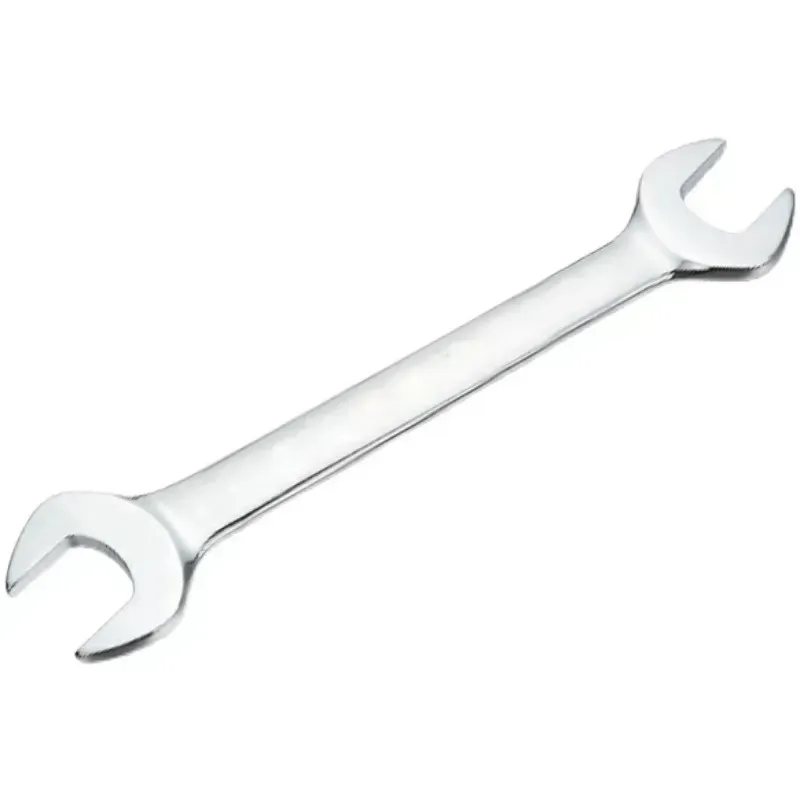

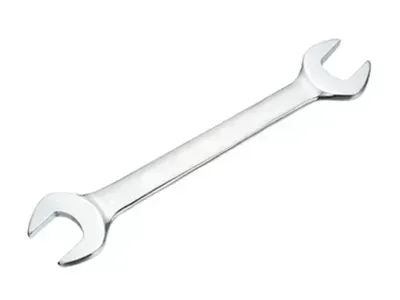

Wrench Wrench

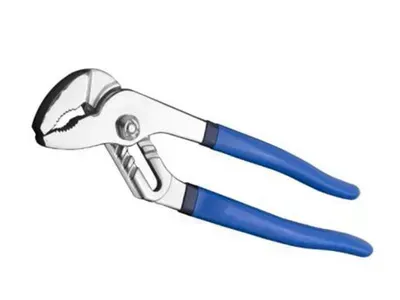

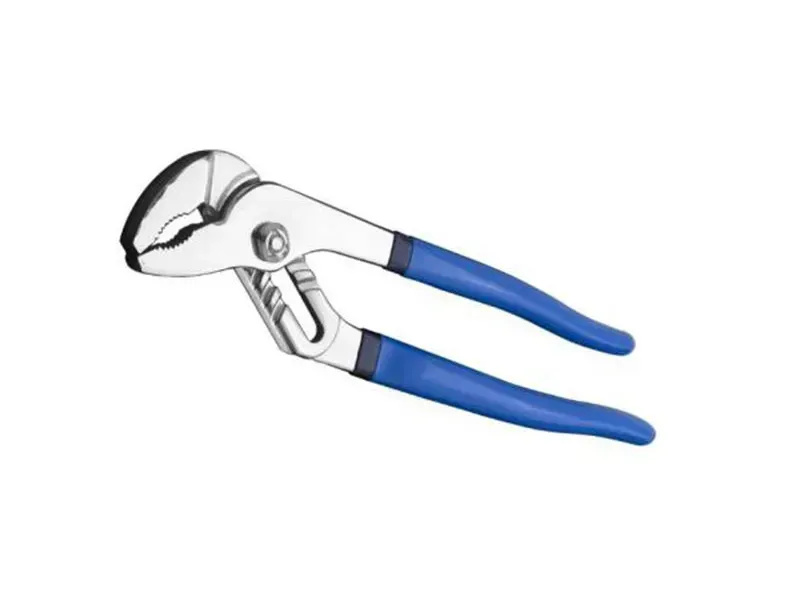

Pliers Pliers
